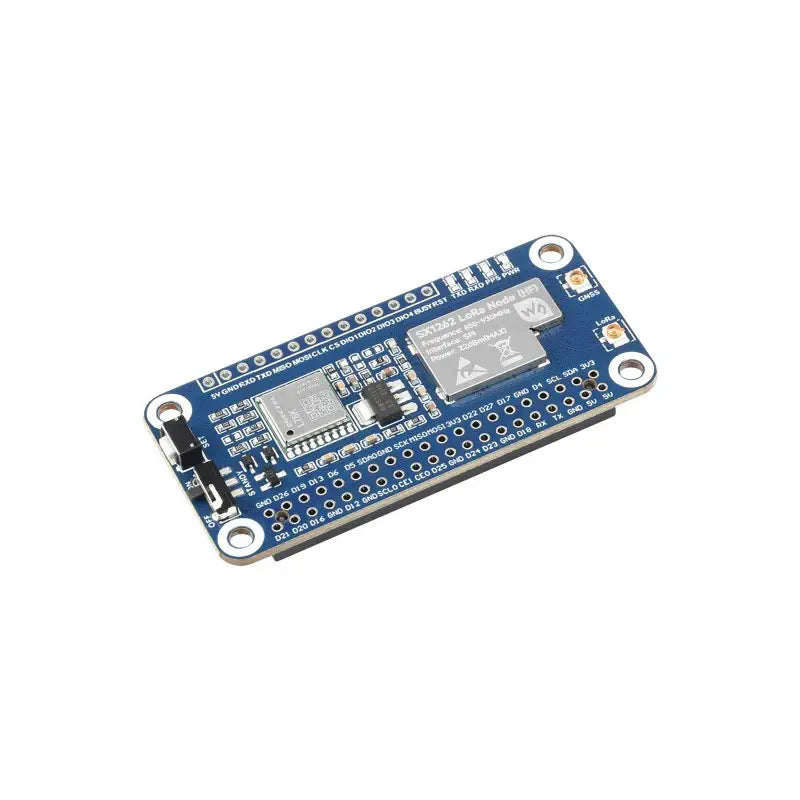

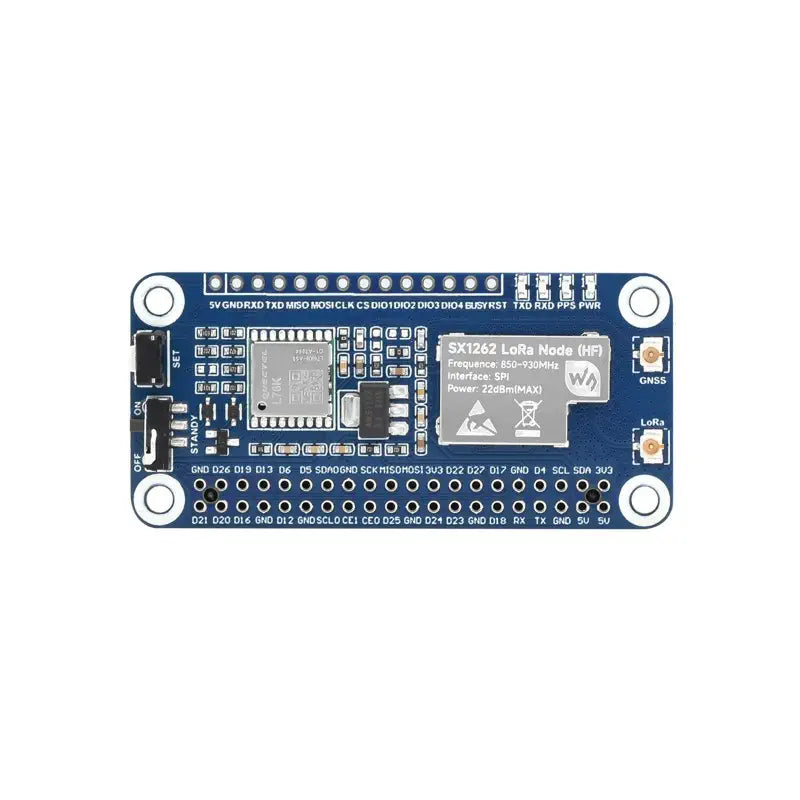

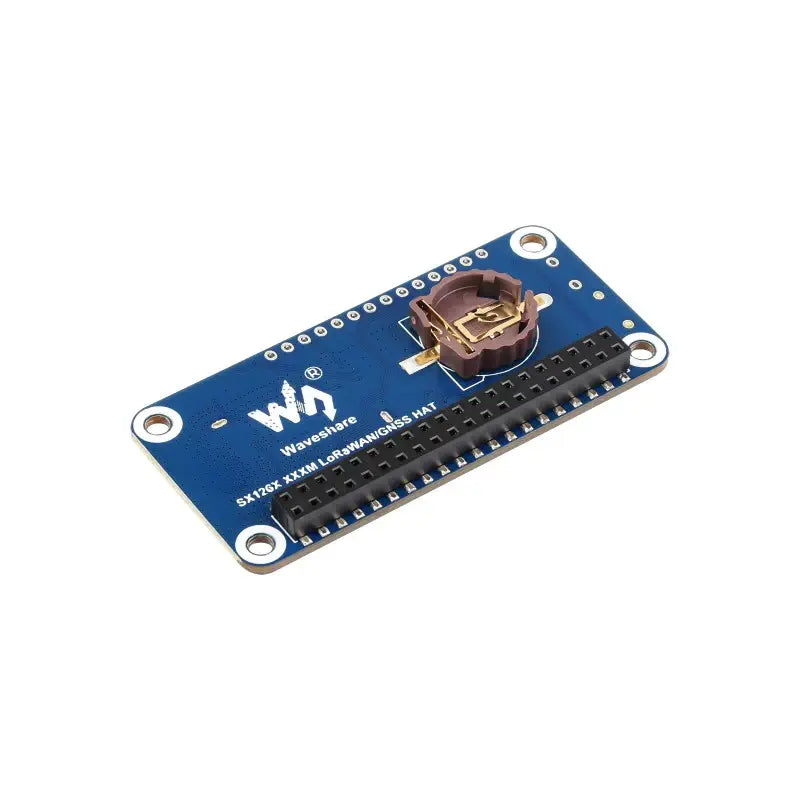

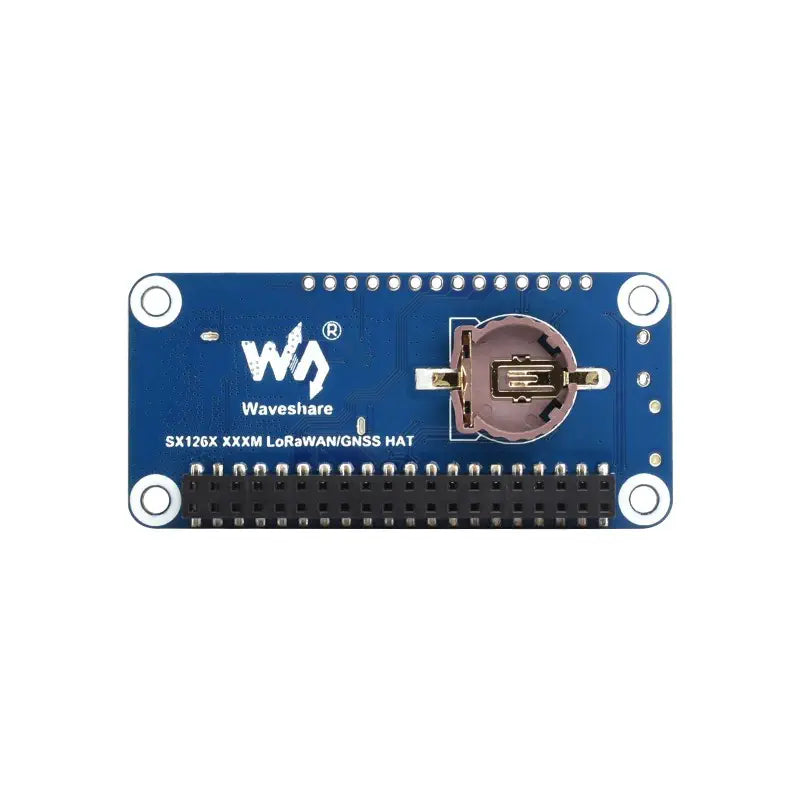

Waveshare SX1262 LoRaWAN Node Expansion Board for RPi, CB Antenna, 868/915, GNSS

WaveshareSKU: RB-Wav-694
Manufacturer #: SX1262 868/915M LoRaWAN/GNSS HAT

Price  :
Sale price $24.99

Shipping calculated at checkout

On Demand See due date

This is an On Demand item and is not normally stocked. We will order it for you along with our next purchase from the supplier.

* Delays depend on the order frequency from each supplier and the approximate arrival date is indicated in the due date. Returns are not accepted on On Demand and Clearance Items except when they are found defective, in which case the product may be repaired or replaced at RobotShop's discretion.

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Waveshare SX1262 LoRaWAN Node Expansion Board for RPi, 868/915, GNSS
  • Equipped with a Magnetic CB antenna
  • Utilizes the new generation SX1262 RF chip
  • Offers optional GNSS positioning with GPS/BD support
  • Ideal for Sub-GHz frequency band networks
  • Connects to servers such as TTN for LoRaWAN network construction

The Waveshare SX1262 LoRaWAN Node Expansion Board for RPi, CB Antenna, 868/915, GNSS is a high-quality product designed for Raspberry Pi. It comes equipped with a Magnetic CB antenna and offers options for frequency band and GNSS function. This product belongs to a series of LoRa modules that utilize the new generation SX1262 RF chip, renowned for its long communication distance and robust anti-interference ability.

This expansion board is ideal for Sub-GHz frequency band networks and is available in both LF (410~510MHz) and HF (850~930MHz) frequency band versions. When used in conjunction with a LoRa gateway, this board can be connected to servers such as TTN, thereby facilitating the construction of a LoRaWAN network.

In addition to the basic LoRaWAN version, this product also offers an optional GNSS positioning function with GPS/BD support, enhancing its versatility and functionality.

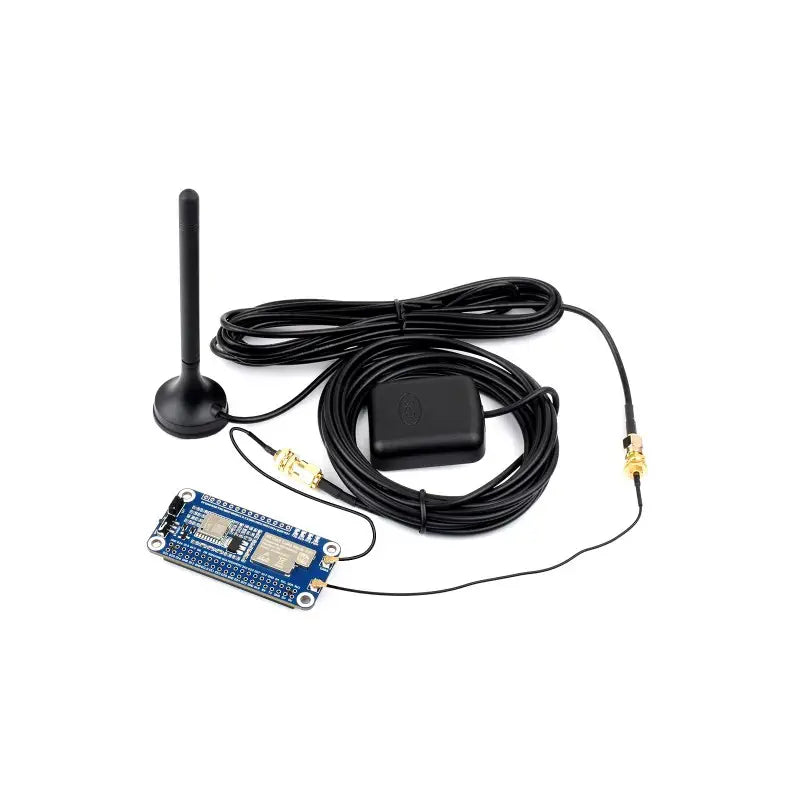

  • 1x SX1262 868/915M LoRaWAN HAT
  • 1x 868/915M Magnetic CB Antenna
  • 1x IPEX to SMA Adapter Cable 17cm
  • 1x Screws Pack
  • 1x 2x20-Pin Female Pinheader

  • 65 x 30.50 mm (L x W)
  • RF Chip: SX1262
  • Frequency Band: LF: 410~510 MHz, HF: 850~930 MHz
  • Modulation: LoRa / (G)FSK
  • Data rate: LoRa: 0.018~62.5 Kbps, (G)FSK: 0.6~300 Kbps
  • EMIT POWER: 22dBm@3.3V
  • Spreading factor: SF7 SF12
  • Operating voltage: 3.3 V
  • Module current consumption: emitting current: 107mA@22dBm, receiving current: 5.3mA@125KHz
  • Communication bus: SPI
  • Operating temperature: 0 - 50 ℃
  • INTERFACE: 40PIN GPIO header
  • GNSS parameters: GNSS module: L76K, GNSS type: GPS/GLONASS/BDS/QZSS
  • L1 BAND RECEIVER (CHANNELS): 32 Tracking ch/72 Acquisition ch
  • A-GNSS: support
  • Receiving sensitivity (ACQUISITION, RE-ACQUISITION, TRACKING): -148 dBm, -160 dBm, -162 dBm
  • TTFF (TIME TO FIRST FIX): cold starts: 30s, Autonomous, 5.5s, With AGNSS
  • POSITION ACCURACY: 2.0 m CEP
  • Speed accuracy: 0.1m/s
  • Acceleration accuracy (Max): 0.1 m/s²
  • UART rate: Range: 4800 ~115200 bps, Default: 9600 bps
  • GNSS data update rate: Max: 5Hz, Default: 1Hz
  • Weight: 138 g
