Description

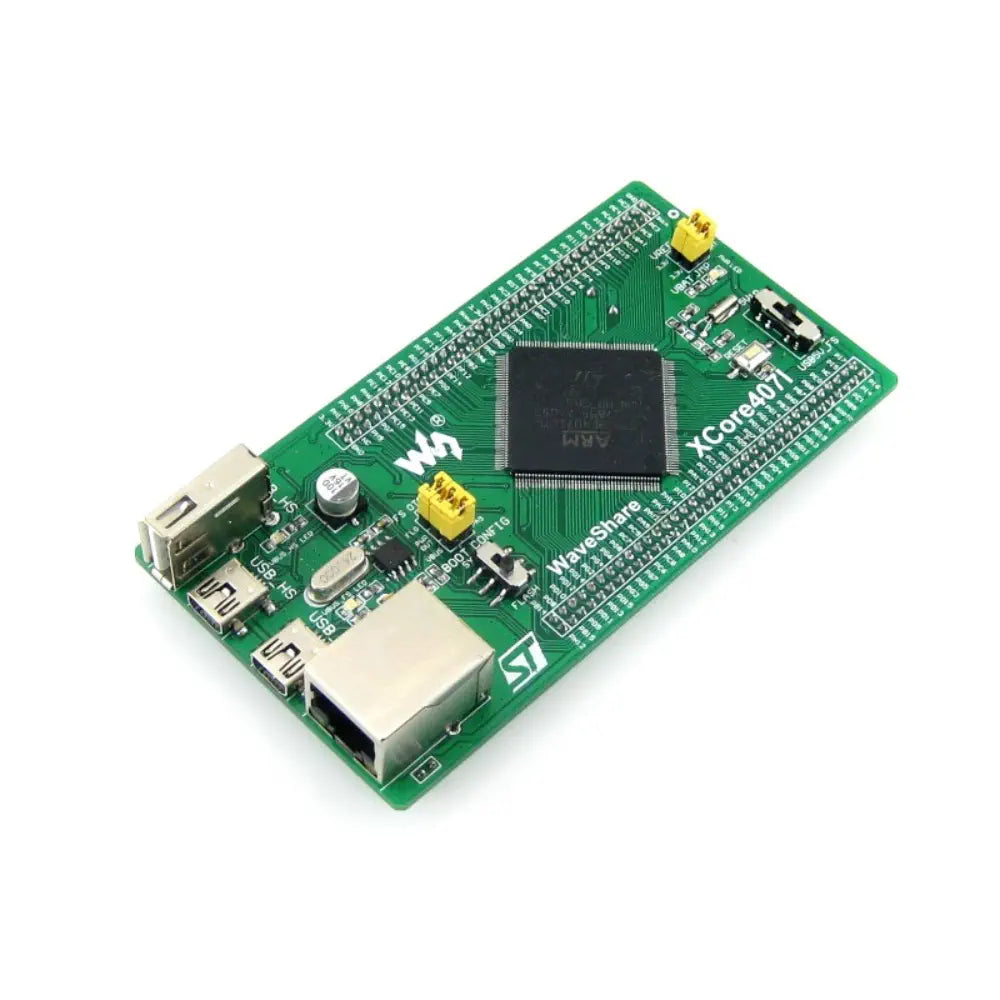

- 1x Waveshare XCore407I STM32F4 Core Board
- 1x XCore407I development board
- 1x USB Type A to Mini-B cable
- Core: Cortex-M4 32-bit RISC
- Feature: Full set of single-cycle DSP instructions
- Operating Frequency: 168MHz, 210 DMIPS/1.25 DMIPS/MHz
- Operating Voltage: 1.8V-3.6V
- Package: LQFP176
- Memories: 1024kB Flash, 192+4kB SRAM
- Communication Interfaces: 3 x SPI, 4 x USART, 2 x UART, 2 x I2S, 3 x I2C, 1 x FSMC, 1 x SDIO, 2 x CAN
- USB 2.0 high-speed/full-speed device/host/OTG controller with dedicated DMA, ULPI, and on-chip full-speed PHY
- 10/100 Ethernet MAC
- 8 to 14-bit parallel camera interface
- AD & DA Converters: 3 x AD (12-bit, 1μs, shares 24 channels); 2 x DA (12-bit)
- Debugging/Programming: Supports JTAG/SWD interfaces, supports IAP
- MIC2075-2, onboard USB FS power management device
- AMS1117-3.3V voltage regulator
- K9F1G08U0E, 1G Bit NandFlash
- DP83848, Ethernet PHY
- MIC2075-1, onboard USB HS power management device
- USB3300, USB HS PHY
- Power supply switch, powered from 5Vin or USB connection
- Boot mode switch, for configuring BOOT0 pin
- Power indicator
- USB FS LED
- USB HS LED
- Reset button
- 8M crystal, MCU clock, enables the MCU to run at higher speed by frequency multiplication
- 24M crystal, USB3300 clock
- 50M crystal, DP83848 clock
- 32.768K crystal, for internal RTC with calibration
- Ethernet connector
- USB FS mini connector
- USB HS mini connector
- USB HS type A connector
- MCU pins expander, VCC, GND, and all idle I/O ports are accessible on expansion connectors for further expansion
- USB OTG/HOST jumper
- VREF/VBAT jumper
- Ethernet I/O selection solder joint
- USB HS I/O selection solder joint
- PDR selection solder joint: 1.8-3.6V, -40~105°C OR 1.7-3.6V, 0~70°C
