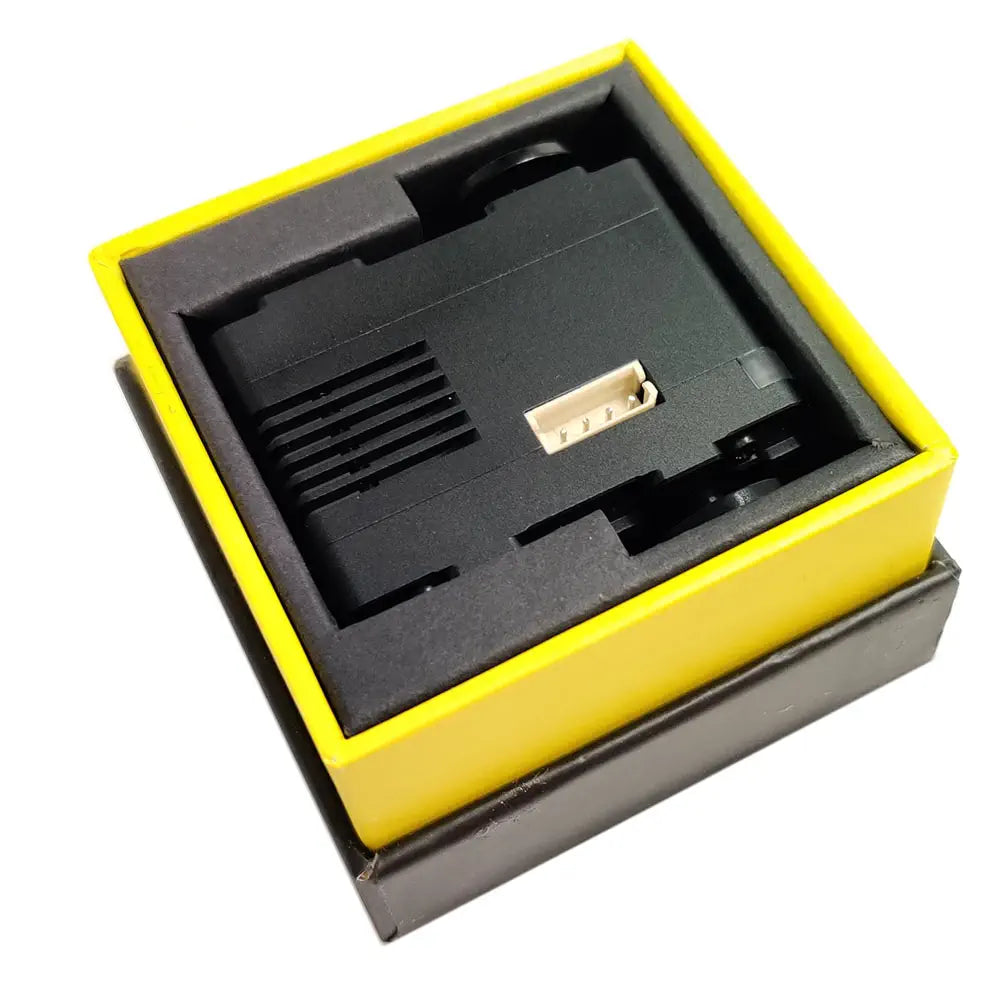

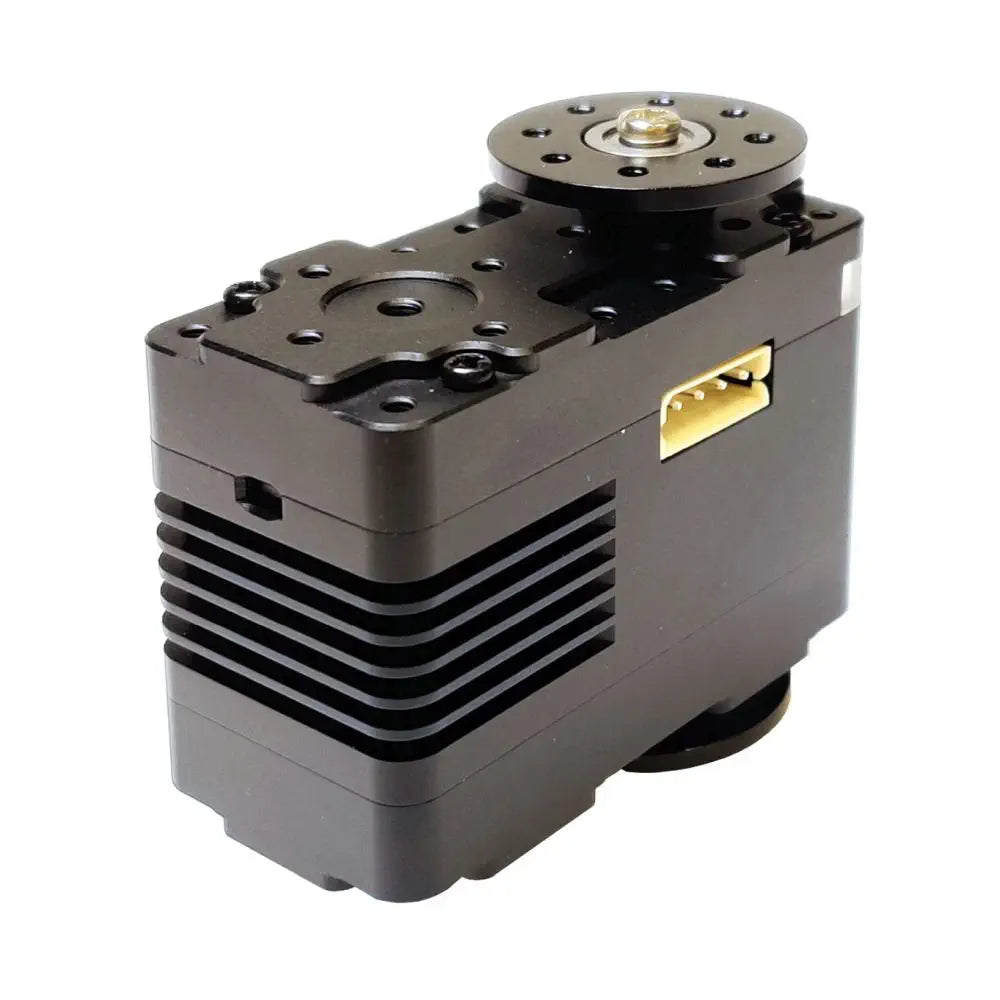

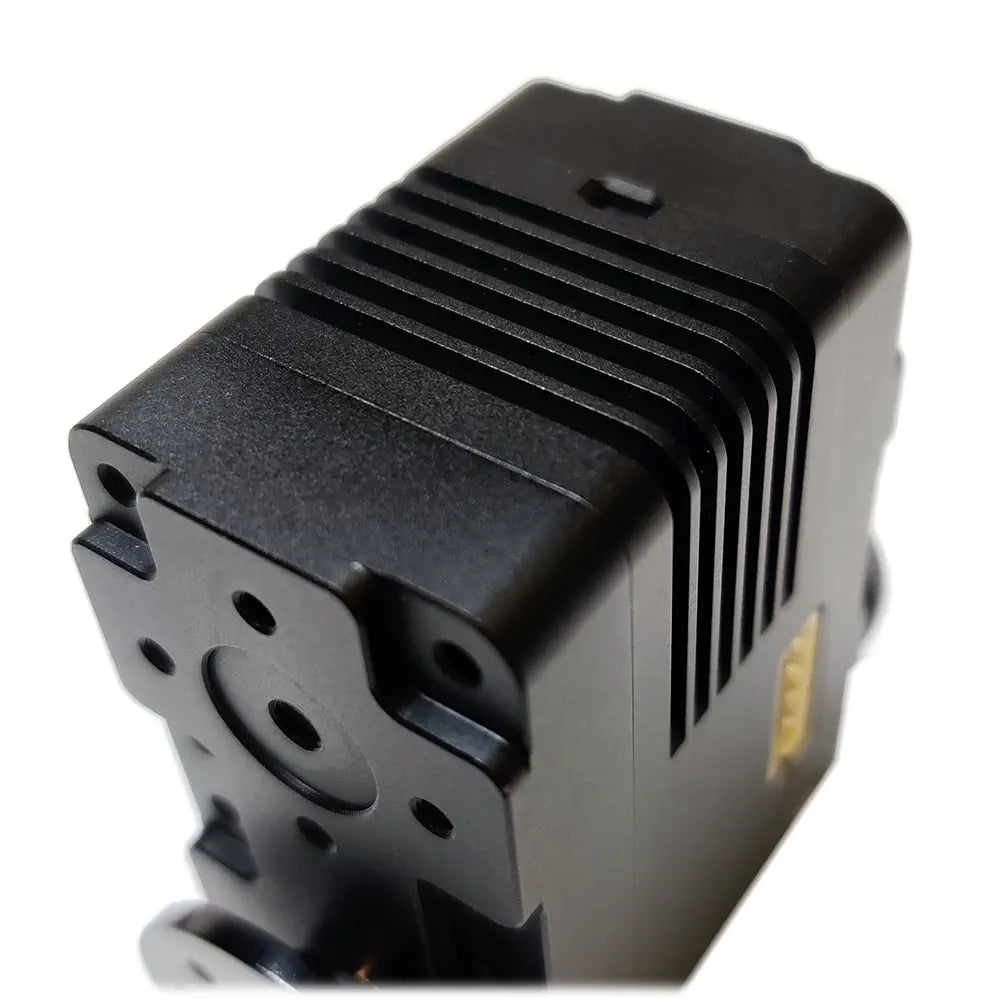

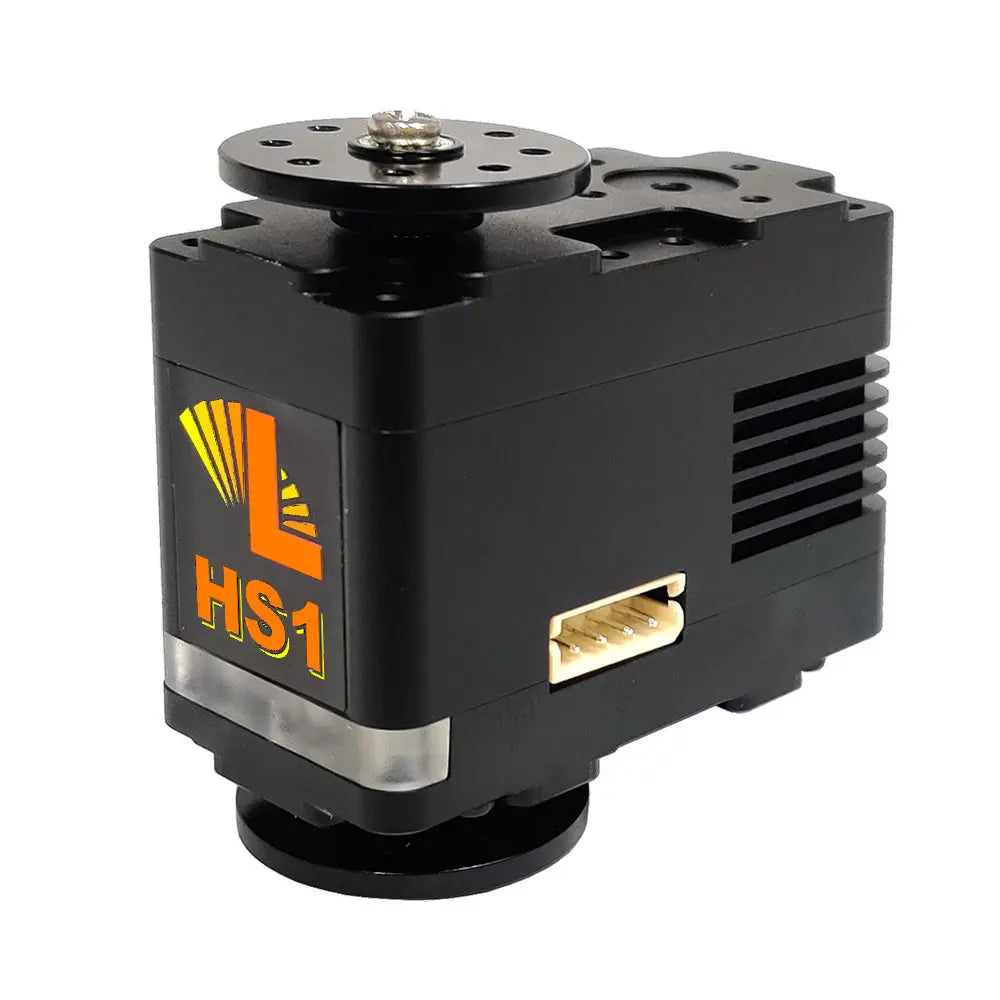

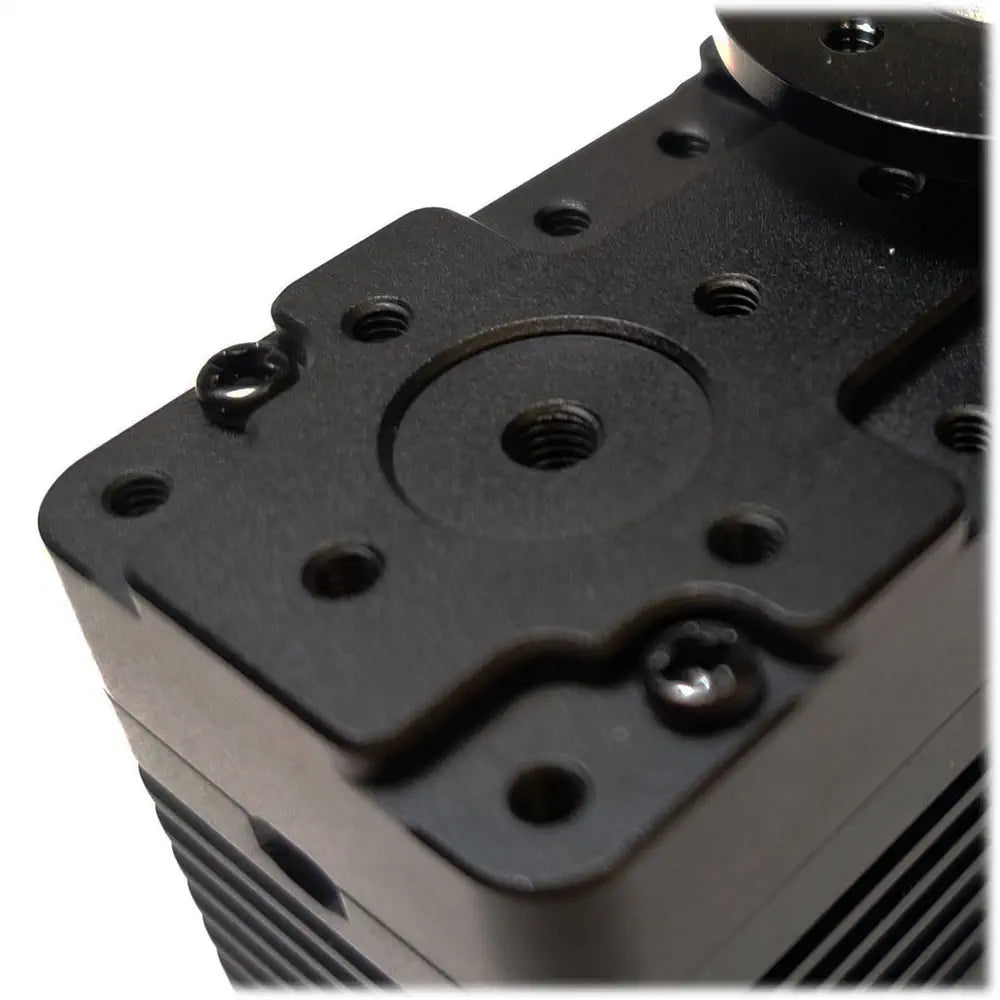

Lynxmotion SES-V2 High Speed Smart Servo (LSS-HS1)

LynxmotionSKU: RB-Lyn-988
Manufacturer #: LSS-HS1

Price  :
Sale price $67.99

Shipping calculated at checkout

Stock  :
In stock, 99 units

Payments and Security

American Express Apple Pay Diners Club Discover Google Pay Mastercard PayPal Shop Pay Venmo Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Description

  • Lynxmotion SES-V2 High Speed Smart Servo (LSS-HS1)
  • Features a configurable, modular smart servo motor
  • Designed for the Lynxmotion Servo Erector Set (SES)
  • 100RPM - no load (12V)
  • 8 Kg-cm max static torque & 1.6 Kg-cm max dynamic torque (12V)
  • Metal gears, RGB LED bar, sensor feedback, button interface
  • Smart / wheel / RC modes

The Lynxmotion SES-V2 High Speed Smart Servo (LSS-HS1)) are new compact, modular actuators which were designed to be an evolution of the standard RC servo for use in multi degree-of-freedom robots, animatronics, custom RC projects and more. The lineup currently includes three “smart servos” which differ in maximum torque and speed, and share the same dimensions, mounting points and output spline.

The servos form the core modules of the next generation Lynxmotion Servo Erector Set (S.E.S.) and a wide variety of modular brackets, mechanics and electronics have been designed around them. "Smart" means each servos' parameters are user-modifiable and configurable, there is sensor feedback (Voltage, Current, Temperature, Position, and RPM), built-in safety features, and although they work best when connected to a microcontroller or computer, can be used as advanced RC actuators.

The custom LSS serial protocol was built upon the SSC-32 / 32U protocol and makes communicating with and configuring the servos one of the easiest and most intuitive to use.

Note: The servo cannot be used on its own as no communication interface is included with the servo. The suggested serial interface is the Lynxmotion (LSS) - Adapter Board (USB Type-C)(USB, Arduino, Bee socket compatible), though most 5 V USB to serial adapters can be used (be sure to provide power separately). Any RC system can be used, though 6-12 V power to the LSS servo(s) should be provided separately.

LSS Articulated Arm - Shells 01LSS Articulated Arm - Shells 02

Lynxmotion (LSS) - 4 DoF Robotic Arm (Assembled) - Example of Smart Servos Integration

Lynxmotion Smart Servo Brackets

Lynxmotion's Smart Servos are designed to be part of the Lynxmotion Servo Erector Set (SES) modular robot building system and are compatible with dozens of brackets and frame components.

Lynxmotion Smart Servo (LSS) - High Speed (HS1)

Lynxmotion (LSS) - Adapter Board (USB Type-C)

The Lynxmotion (LSS) - Adapter Board (USB Type-C) is an electronic board that allows for easy connection to and control of the Lynxmotion Smart Servos. The board includes a variety of features and functions as a central power distribution board via six LSS connectors.

The Lynxmotion SES-V2 Power Distribution Board for LSS (LSS-HUB) provides a simple solution to supply power to and communicate with the smart servos. It is also a useful tool to split the LSS bus from one servo to two or three while allowing these servos to be powered separately. The Power Hub can be mounted directly to the servos.

Lynxmotion Smart Servo (LSS) - High Speed (HS1)

Gears

Custom designed gears can be used to provide external gearing for the Lynxmotion Smart Servo (LSS) motors.

Lynxmotion Smart Servo (LSS) - High Speed (HS1)

Lynxmotion SES-V2 Geared Gripper Kit

The Lynxmotion SES-V2 Geared Gripper Kit is made of durable aluminum plates and standoffs and uses foam to conform to the object being grasped. Inner teeth on the aluminum help "bite" into objects when necessary.

Lynxmotion Smart Servo (LSS) - High Speed (HS1)

Lynxmotion LSS Configuration Software or LSS-Config (Download)

The Lynxmotion LSS Configuration Software or LSS-Config (Download) provides easy access to viewing and modifying of the various settings that control the main features and functionality of the Lynxmotion Smart Servo Motors as well as allowing firmware updates.

Lynxmotion Smart Servo (LSS) - High Speed (HS1)

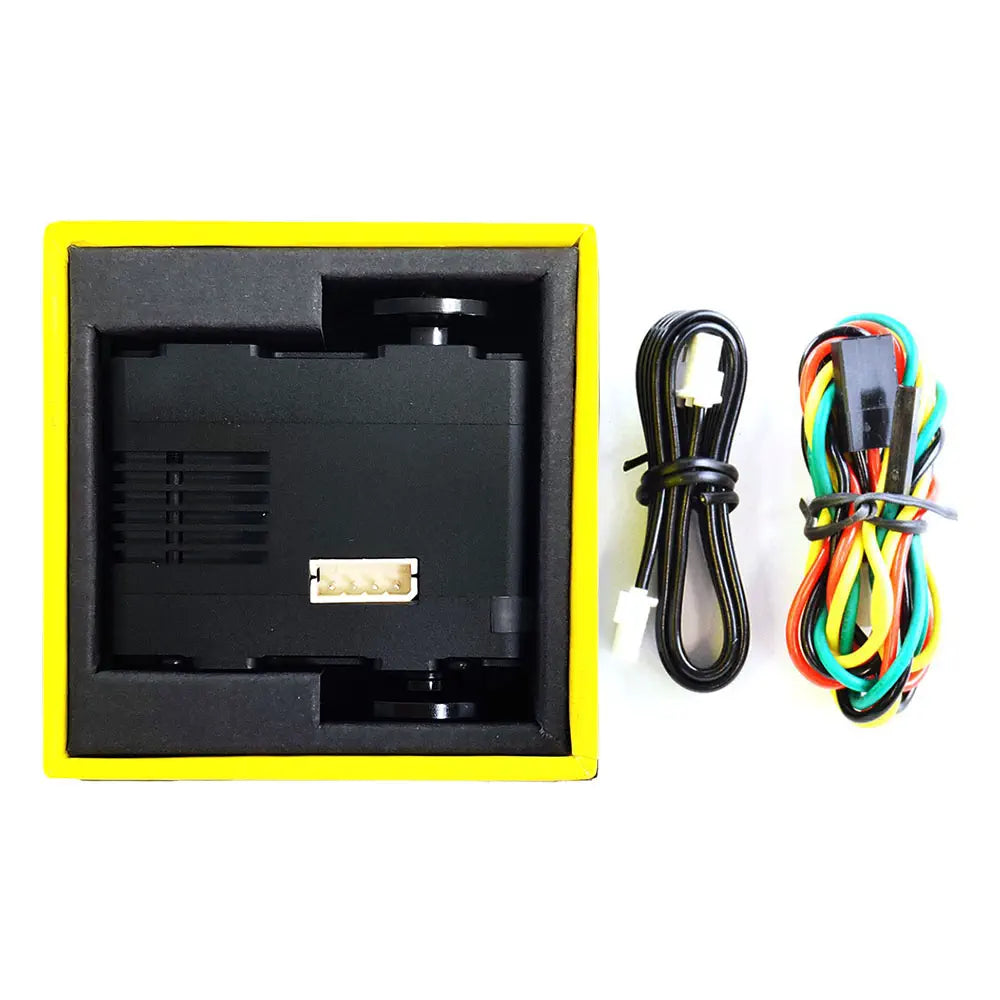

  • 1x Lynxmotion Smart Servo - High Speed (HS1)
  • 1x Aluminum driving horn (SES pattern) pre-assembled
  • 1x Idler horn (SES pattern) pre-assembled
  • 1x Cable: 150mm long 4-pin Molex to 4-pin Molex
  • 1x Cable: 150mm long 4-pin Molex to 3-pin 2.54mm “RC Standard” connector plus 2.54mm single pin connector



Size

  • 51 x 25 x 38.3 mm (case only)

  • Nominal Voltage (recommended): 12V (6V min, 12.6V max)
  • Torque, max. static at 12V: 8 Kg-cm
  • Torque, max dynamic at 12V: 1.6 Kg-cm
  • Speed, no load at 12V: 100RPM
  • Current, no load, standby at 12V: 70mA
  • Current, stall at 12V: 300mA
  • Operating temperature range: 45°C~67°C
  • Spline: 24 Tooth (compatible with Hitec standard spline)
  • DC Motor: Cored
  • Gear ratio: 1:146
  • Gear material: Copper
  • Operating angle: 360° absolute and virtual multi-turn
  • Communication type: TTL full duplex asynchronous serial or RC PWM
  • Communication protocol: Custom Lynxmotion Smart Servo (LSS)
  • Baudrate range: 9600 bps ~ 921600 bps
  • Baudrate (recommended) : 115200 bps
  • Connector: Molex 4-pin, 2.54mm Low Profile (pinout: Rx | Vcc | GND | Tx)
  • Weight: 57.0g
